Products

STAPLES

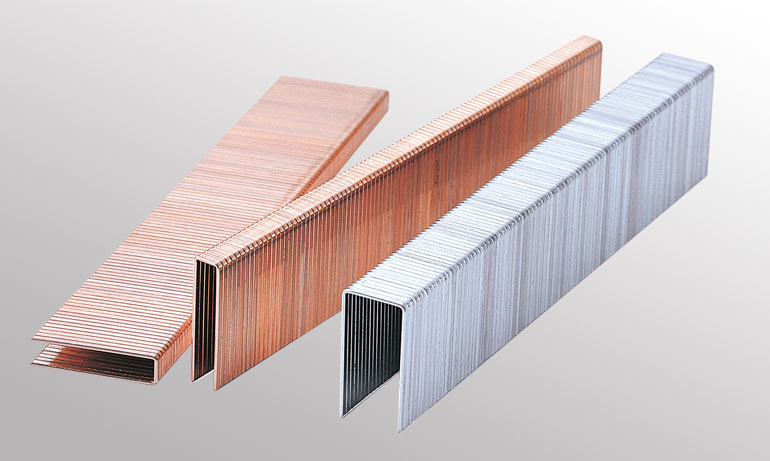

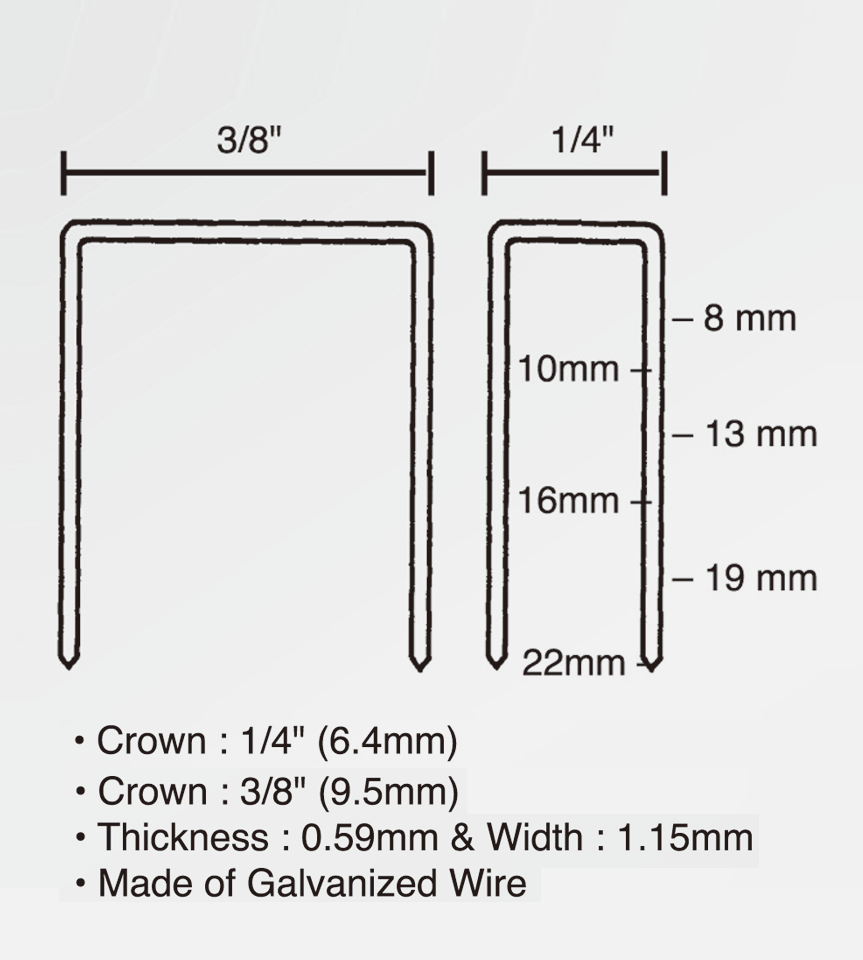

20 GAUGE GALVANIZED STAPLES

Made of Galvanized Wire


S

Applications:

Furniture Manufacturing, Wooden Box Manufacturing, Fastening Works such as Architectural Applications.
ORDER NO. LENGTH M/BOX BXS/CTN
S-J1008 S-J408 5/16" 8 mm 5.0 M 50 60
S-J1010 S-J410 3/8" 10 mm 5.0 M 30 60
S-J1013 S-J413 1/2" 13 mm 5.0 M 30 40
S-J1016 S-J416 5/8" 16 mm 5.0 M 30 30
S-J1019 S-J419 3/4" 19 mm 5.0 M 20 30
S-J1022 S-J422 7/8" 22 mm 5.0 M 20 20

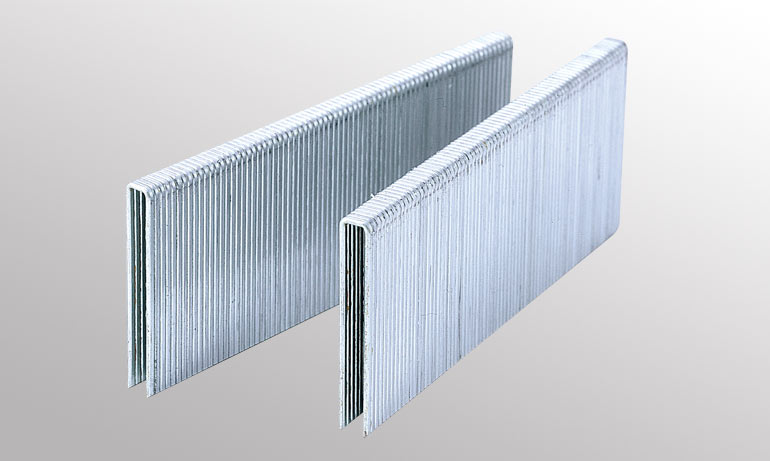

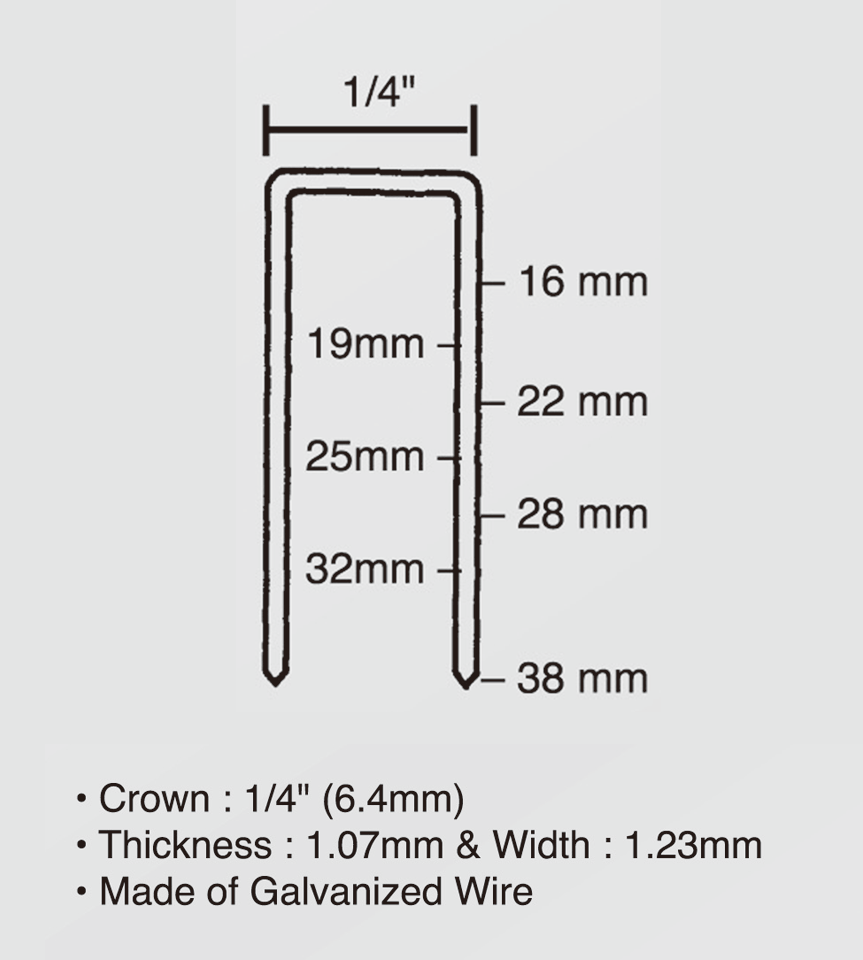

18 GAUGE NARROW CROWN STAPLES

Made of Galvanized Wire
These Staples are manufactured to interchange with the following Series of Staples:


SN

To fit the following tools:

  • Atro 90 Series
  • BeA 90 Series
  • Duo-Fast 1800 Series
  • Haubold 6000 Series
  • Hitachi 11100 Series
  • Omer 90 Series
  • Senco L Series

Applications:

Cabinet/Furniture Assembly, Underlayment, Mouldings, Aluminium and Vinyl Siding, Fascia and Soffits, Door and Window Casings, Trim, Wood Shingles and Decking.
ORDER NO. LENGTH M/BOX BXS/CTN
SN-L16 5/8" 16 mm 5.0 M 10
SN-L19 3/4" 19 mm 5.0 M 10
SN-L22 7/8" 22 mm 5.0 M 10
SN-L25 1" 25 mm 5.0 M 10
SN-L28 1-1/8" 28 mm 5.0 M 10
SN-L32 1-1/4" 32 mm 5.0 M 10
SN-L38 1-1/2" 38 mm 5.0 M 10

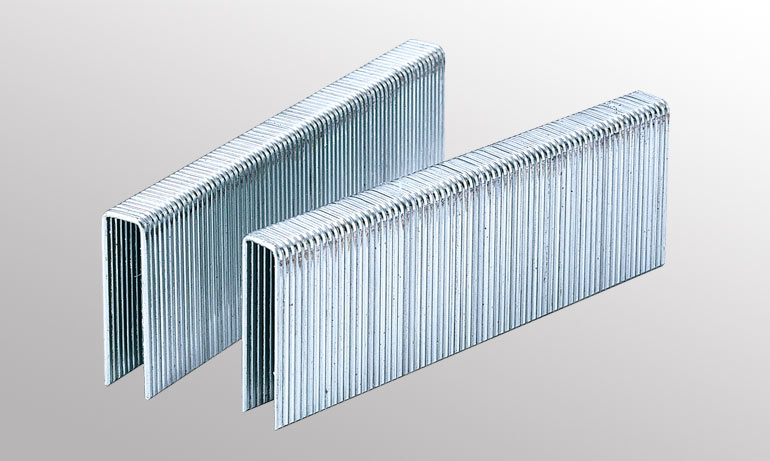

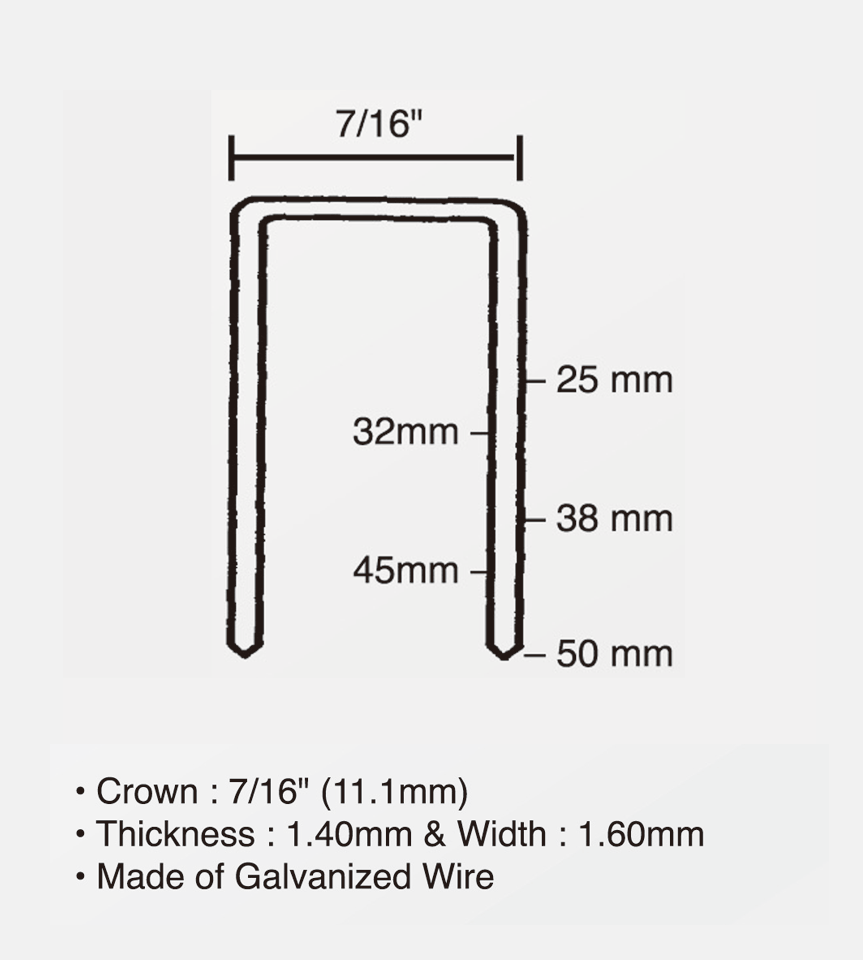

16 GAUGE MEDIUM CROWN STAPLES

Made of Galvanized Wire


SM

These Staples are manufactured to interchange with the following Series of Staples:

  • Atro 100 Series
  • BeA 155 Series
  • Hitachi N5008 or 11200 Series
  • Senco N Series
  • Many Others

Applications:

Sheathing, Subflooring, Roof Decking, Lathing, Sub-components, Furring, Window Units, Fencing, Decking, Cedar Shingles, Fascia and Soffits, Furniture Frames, Crate and Box Assembly, Pallets and Pallet Repair and Vinyl Siding.
ORDER NO. LENGTH M/CTN
SM-N25 1" 25 mm 10 M
SM-N32 1-1/4" 32 mm 10 M
SM-N38 1-1/2" 38 mm 10 M
SM-N45 1-3/4" 45 mm 10 M
SM-N50 2" 50 mm 10 M

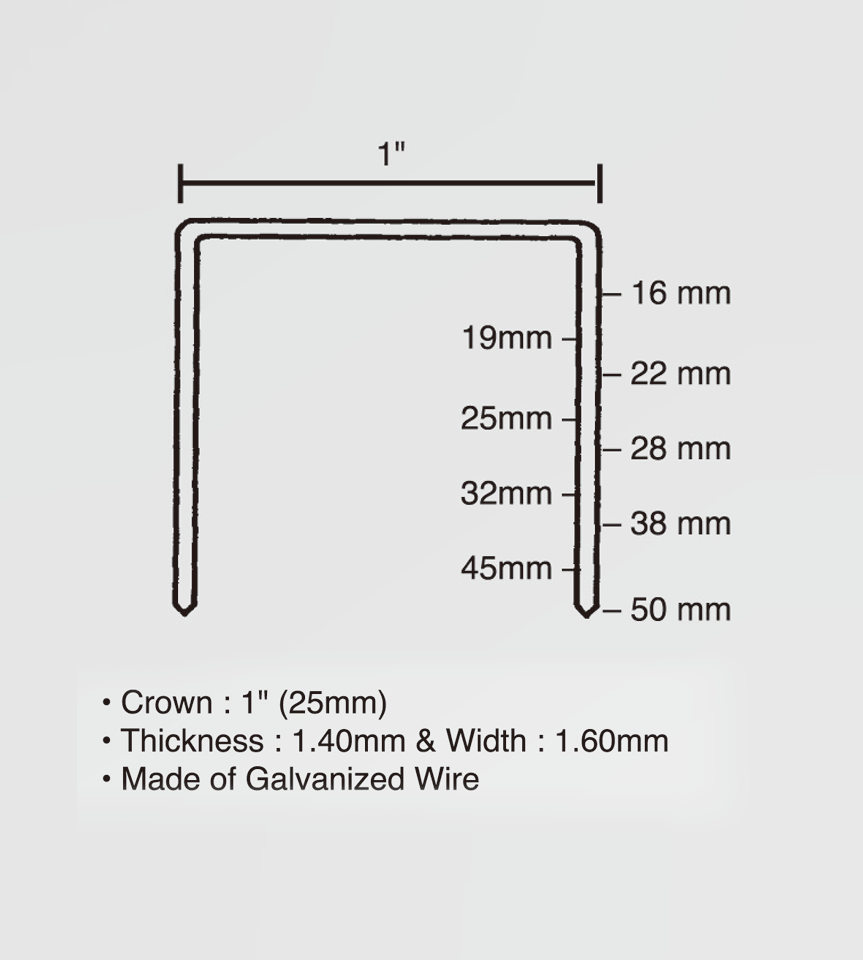

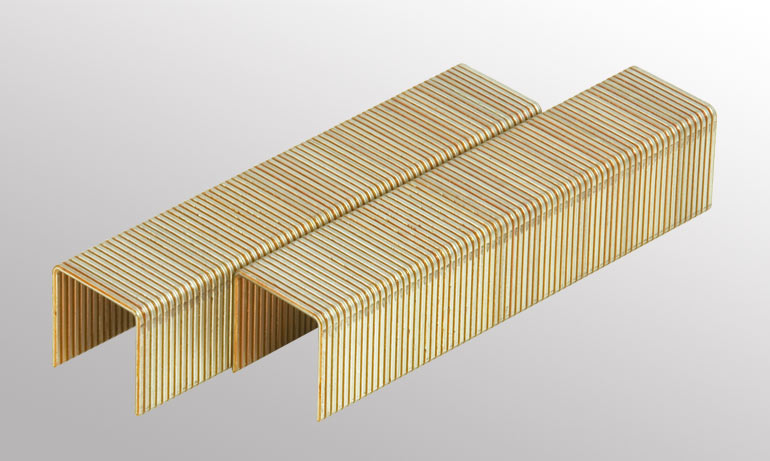

16 GAUGE WIDE CROWN STAPLES

Made of Galvanized Wire


SW

These Staples are manufactured to interchange with the following Series of Staples:

  • Duo-Fast 1700 Series
  • Hitachi 11300 Series
  • Omer WP Series
  • Senco P Series
  • Many Others

Applications:

Shingles, Lathing, Insulation Board, Butt Joints, Belt Lines and Furniture/Cabinet Frames.
ORDER NO. LENGTH M/CTN
SW-P16 5/8" 16 mm 10 M
SW-P19 3/4" 19 mm 10 M
SW-P22 7/8" 22 mm 10 M
SW-P25 1" 25 mm 10 M
SW-P28 1-1/8" 28 mm 10 M
SW-P32 1-1/4" 32 mm 10 M
SW-P38 1-1/2" 38 mm 10 M
SW-P45 1-3/4" 45 mm 10 M
SW-P50 2" 50 mm 10 M
